Θερμοστάτης για την έξυπνη υποδαπέδια θέρμανση
20A Underfloor heating thermostat TFAEY-379 230VAC touch screen 0-50oC 50Hz 220V AC+/-10%

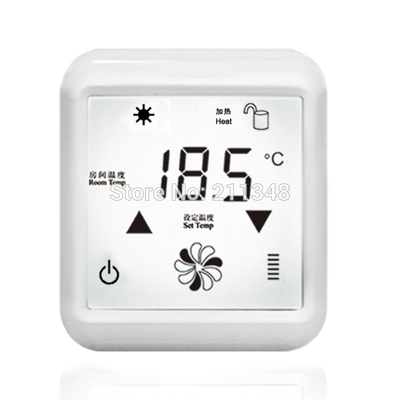

Θερμοστάτης touch screen για την έξυπνη υποδαπέδια θέρμανση
viralproducts.eu/heatingfilm
- Brand Name:TF
- Type:Electric Heater Parts
- Model Number:TFAEY-379
- Product:AC220V underfloor heating thermostat
- Dimension:86*86*13.6mm
1. Stylish and slim line design
2. 3 m wires with external temperature sensor
3. Back light illumination
4. Maximum load capacity: 3500W
5. Can be air only / floor only / Air & Floor model
6. Touch screen LCD
7. Housing Material: Anti-flammable PC.
8. Certification: CE
Specifications:
Power supply: AC220V +-15%
Switch Current Rating: 20A
Set-point Range (Adaptable): 0-70 Centigrade (floor temp.)
0-50 Centigrade (air temp.)
Display Accuracy: +-1 Centigrade
Housing: Flame Retarding PC.
Sensing Element: NTC
Display: Touch screen LCD
Dimension: 86×86×13.6mm
Mounting hole distance:60mm (standard)
Load:<2a 30vdc="" span="">
Application:
Water heating system,
Electric heating
Actuator control
Packing Includ:
1 Manual Instructions(English).
1 Probe with 3m cable.
1 TF series AE-Y379 touch screen thermostat.
- Unit Type: piece
- Package Weight: 0.5kg (1.10lb.)
- Package Size: 15cm x 10cm x 10cm (5.91in x 3.94in x 3.94in)
